1148

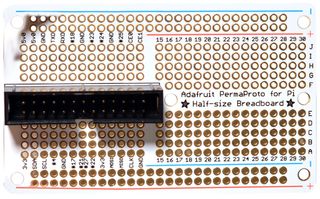

1148 is a PermaProto half sized proto board in a blender with a Pi Cobbler for Pi. It has the Cobbler baked right in. Simply solder the 2 x 13 pin header in and will get all the labelled breakouts with tons of prototyping space, power rails, mounting holes and that gorgeous silk. This proto board is the PCB with basic layout of a half sized breadboard (the PCB has 30 rows). The top side has a white silkscreen, and the markings to make transferring components easy. The bottom has the 5 hole pad design that matches a classic breadboard, with 4 power bus lines on the sides, and no mask so user can easily cut traces when necessary. The 1.2mm diameter drill holes are used so even parts with big leads will fit. All holes are thru plated for strength. The finish is a gold plate. There are also tons of mounting holes so user can attach the PCB to project box.

• 13 rows of 4 pin holes breaking out GPIO cable, 1 row of double 4 pin & 14 rows of double 5 hole row
• 4 power rails with positive/negative markings
• 85mm x 55mm, 0.063inch thick FR4
• 1.2mm drill holes

Applications

Hobby & Education

Contenu

PCB, Box header.
