8345 W/4 MA194-24-BK

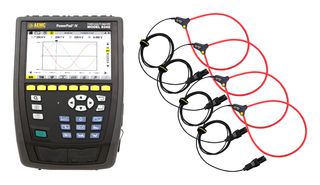

8345 W/4 MA194-24-BK is a portable three-phase, Class A power quality analyzer w/ 4 MA194-24-BK sensors. It enables technicians and engineers to measure and perform diagnostics and power quality work on one, two or three phase networks. This very advanced event recorder meets the highest performance and measurement time accuracy requirements providing a large number of calculated values and processing functions to make installations and maintenance easier. This power and energy analyzer allows the measurement of voltage, current, frequency, etc. The display of the curves is completely automatic and goes up to 10 complete cycles. All power and energy measurements, and other associated parameters, necessary for a good analysis of an electrical installation in terms of its energy efficiency, are carried out according to the IEEE1459 standard.

• 5 voltage / 4 current, isolated inputs
• Voltage 5V to 1,000VAC and VDC
• Voltage 400KSps / current 200KSps / surge 2MSps sampling rate
• Power from phase from 100 to 1000V AC/DC with external supply block (included)
• 52 / 20,000 with email notifications
• Real-time mode, power mode, unbalance mode
• 16GB SD-card (included)
• 7" color LCD touch screen
• Built-in clock / GPS
• USB, Ethernet, Wi-Fi, Web server, IRD server, USB port (type A)

Contenu

Meter, Extra-large tool bag, Internal carrying pouch, Hand strap, Four MA194-24-BK sensors, USB cable, Five 10 ft black voltage leads with alligator clips, Twelve color-coded input ID markers, Power adapter (PA32ER) with US power cord, Two 6ft stackable leads, Two 10ft black voltage leads with alligator clips for power adapter PA32ER, SD Card, One power plug adaptor for PA32ER, 5.8Ah li-ion battery pack, Quick start guide, USB stick with DataView® software, User manual.
