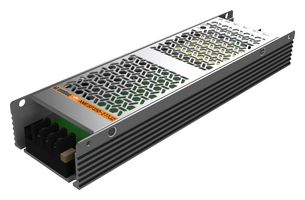

AMESP350U-5S277JZ

AMESP350U-5S277JZ is a AMESP350U-277JZ series efficient, enclosed, fan less, and semi-potted AC-DC power supply module. Offering a wide commercial input voltage range, low power consumption, high efficiency, high reliability and safer isolation. This new series offers great operating temperatures, from -40°C to +85°C with full power up to 50°C and features an isolation of 4000VAC with improved reliability and system safety. Additionally, it has operating altitude of 5000m. Furthermore, a high MTBF of 300,000h, output short circuit protection (OSCP), output over-current protection (OCP) and an output over-voltage protection (OVP) come standard with the series. It is great for street lighting controls, grid power, instrumentation, industrial controls, telecom, communication and civil applications.

• Active PFC, 150% peak load output for 1 second
• Designed to meet EN/UL/BS EN62368-1, EN60335-1, EN61558-1, GB4943.1 approvals
• 3 year warranty, single output
• Input voltage rating is 85 to 305VAC, 120 to 430VDC, input current is 4A maximum (115VAC)
• Maximum output wattage is 300W
• Nominal output voltage/current (Vo/Io) is 5V/60A
• Adjustable output voltage is 4.5 to 5.5V
• Maximum capacitive load is 10000µF at room temperature, typical efficiency is 90% at 230VAC
• Metal (AL6063, SGCC) case material
• Dimension is 8.66 x 2.44 x 1.22inch
