SLA3001M
LDO Voltage Regulator IC, Fixed, 3 Output, 6 V to 25 V in, 1 V drop, 1.5 A out, SIP-15

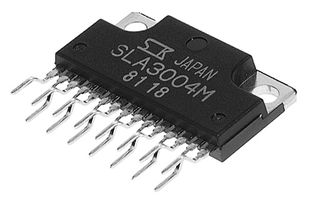

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 14 semaine(s)
Informations produit
FabricantALLEGRO SANKEN
Réf. FabricantSLA3001M
Code Commande95B3001
Fiche technique
Output TypeFixed
Input Voltage Min6V
No. of Outputs3 Output
Input Voltage Max25V
No. of Outputs3Outputs
Regulator Output TypeFixed
LDO Regulator Case StyleSIP
Output Voltage - Nom5V
Output Voltage Min-
Output Current - Output 11.5A
Output Voltage Max-
Output Current - Output 21.5A
PolarityPositive Output
Max Output Current1.5A
Output Voltage - Output 112V
Output Voltage - Output 25V
Dropout Voltage Typ @ Current1V
Dropout Voltage - Typ @ Current1V
IC MountingThrough Hole
Dropout Voltage Vdo1V
IC Case / PackageSIP
No. of Pins15Pins
Operating Temperature Min-30°C
Operating Temperature Max100°C
Product Range-
MSL-
SVHCNo SVHC (17-Jan-2023)
Spécifications techniques
Output Type
Fixed
No. of Outputs
3 Output
No. of Outputs
3Outputs
LDO Regulator Case Style
SIP
Output Voltage Min
-
Output Voltage Max
-
Polarity
Positive Output
Output Voltage - Output 1
12V
Dropout Voltage Typ @ Current
1V
IC Mounting
Through Hole
IC Case / Package
SIP
Operating Temperature Min
-30°C
Product Range
-
SVHC
No SVHC (17-Jan-2023)
Input Voltage Min
6V
Input Voltage Max
25V
Regulator Output Type
Fixed
Output Voltage - Nom
5V
Output Current - Output 1
1.5A
Output Current - Output 2
1.5A
Max Output Current
1.5A
Output Voltage - Output 2
5V
Dropout Voltage - Typ @ Current
1V
Dropout Voltage Vdo
1V
No. of Pins
15Pins
Operating Temperature Max
100°C
MSL
-
Documents techniques (1)
Législation et Questions environnementales
US ECCN:3A991
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (17-Jan-2023)
