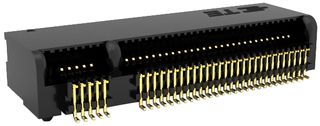

The M.2 (NGFF) series M.2 Connector supports multiple function add-in cards and modules including WiFi, Bluetooth, global navigation satellite systems, near field communication, hybrid digital radio, wireless gigabit alliance (WiGig), wireless wide area network and solid-state storage devices. It also adds functionality to PCIe Gen 3, SATA 3, SATA I/O and USB 3.0. The new, smaller form factor is suitable for applications in new thin platforms. The M.2 next generation form factor (NGFF) product line is a natural transition from the mini card and half mini card to a smaller form factor in both size and volume.

• Available in various heights
• Designed for both single and double-sided modules
• Available in various keying options for module cards
• Support PCI Express 3.0, USB 3.0 and SATA 3.0
• Save more than 20% PCB real estate compare to PCIe mini card
• Reduces connector height by 15%
• Ensures proper mating with various modules cards
• Supports higher data rate

Applications

Wireless, Computers & Computer Peripherals, Communications & Networking, Portable Devices, Consumer Electronics
