CS-DSDHD26MF0-002.5

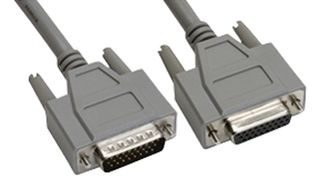

The CS-DSDHD26MF0-002.5 from Amphenol is a grey colour copper shielded male/female 26 pin (HD26) deluxe HD D-sub cable assembly. This high density male/female D-sub cable provides exceptional performance in applications where longevity and repeated disconnects is of major concern. It integrates copper tape and aluminium mylar shielded 26AWG data grade wire with pre-terminated HD26 (aka DB26HD) male and female D-sub connectors. This cable assembly is perfect for RS232 serial data, prototype, control and low voltage applications using 26 pin HD26 interface.

• Cable length of 2.5ft
• HD26 male to HD26 female D-sub connectors pre-installed
• UL listed cable
• Straight through wiring (pin 1 to pin 1) design per industry standards
• Perfect for low voltage signals & DCE/DTE RS232 serial communications
• 100% EMI/RFI shielded design combines aluminium mylar and copper tape
• Fully populated with gold plated contacts for superior signal continuity
• Rugged UL94V-0 flame resistant PVC jacket and overmould for strain relief
• 300V voltage handling capacity at temperatures up to 80°C
• Cables can be easily cut in half and custom terminated for prototyping

Applications

Industrial, Commercial
