L77TWB5W5S

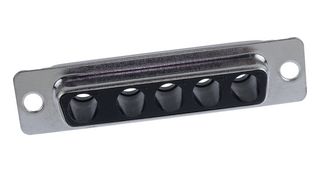

Combination Layout D Sub Connector, TW Series, DB-5W5, Receptacle, 5 Contacts, 5 Power
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 4,070 $ |
| 10+ | 3,520 $ |
| 25+ | 3,330 $ |
| 50+ | 3,190 $ |
| 100+ | 3,050 $ |
| 250+ | 2,840 $ |
| 500+ | 2,710 $ |
| 1000+ | 2,590 $ |
Informations produit
Aperçu du produit
The TW Hybrid D Sub series Hybrid D-sub Connectors permits a mix of contacts including signal, power, shielded, high voltage and fibre optics in the same housing with 18 different contacts arrangements. It was first developed from military series and has improved features new contacts, PCB configurations come preloaded with fixed contacts and brackets. A complete range of housings are also available for cable application. These connectors are supplied with screw machined contacts which are fixed in the insulator.
- <gt/>5000MΩ at 500VDC Minimum insulation resistance
- ≤5mΩ Contact resistance (maximum)
- 7.5A Current rating
- -55 to 155°C Temperature range
Applications
Communications & Networking, Computers & Computer Peripherals, Industrial
Spécifications techniques
TW Series
0Contacts
5Contacts
5
Cable Mount
Metal Body
Gold Plated Contacts
DB-5W5
Receptacle
5 Power
Solder Cup
DB
Bronze
No SVHC (25-Jun-2020)
Documents techniques (3)
Produits associés
4 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
