031-2221

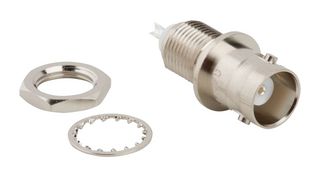

RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Jack, Solder, 50 ohm, Phosphor Bronze
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 7,870 $ |
| 10+ | 7,300 $ |
| 25+ | 7,040 $ |
| 50+ | 6,450 $ |
| 100+ | 6,010 $ |
| 250+ | 5,410 $ |
| 500+ | 5,190 $ |
| 1000+ | 4,860 $ |
Informations produit
Aperçu du produit
The 31-2221 is a UG-1094A/U RF Connector, BNC series, BNC straight Jack with silver-plated phosphor bronze contacts and solder contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.
- Bulkhead-front mount
- Standard polarity
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
- -65 to 165°C Temperature range
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Spécifications techniques
BNC Coaxial
Solder
-
Silver Plated Contacts
Panel Mount
Lead
Straight Bulkhead Jack
50ohm
Phosphor Bronze
4GHz
-
