082-202-RFX

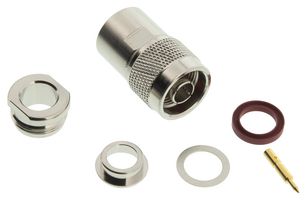

The 82-202-RFX is a RF Connector, N-type series, N-type straight Clamp Plug with gold-plated brass contact and crimp contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393 and RG-8 cable.

• Threaded coupling mechanism
• Standard polarity
• Standard thread direction
• 5000MΩ Minimum insulation resistance
• 500 Mating cycles
• -65 to 165°C Temperature range

Applications

RF Communications, Communications & Networking, Sensing & Instrumentation, 5G Wireless
