112132

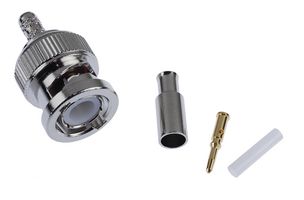

RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG174, RG188A, RG316, Brass
1 000 Vous pouvez réserver des unités dès maintenant
| Quantité | Prix |
|---|---|
| 1+ | 6,630 $ |
| 10+ | 6,090 $ |
| 25+ | 5,900 $ |
| 50+ | 5,380 $ |
| 100+ | 5,220 $ |
| 250+ | 4,970 $ |
| 500+ | 4,790 $ |
| 1000+ | 4,520 $ |
Informations produit
Aperçu du produit
The 112132 is a BNC Straight Crimp Plug RF Connector, BNC series, with gold-plated brass contacts. Body made up of brass with nickel-plated finish and Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature, lightweight units useable up to 11GHz and typically yield low reflection through 4GHz. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for LMR-100, M17/119-RG174, RG-174, RG-188, RG-188A and RG-316 cable.
- Standard polarity
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
- -40 to 85°C Temperature range
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Spécifications techniques
BNC Coaxial
Crimp
RG174, RG188A, RG316
Gold Plated Contacts
Cable Mount
Lead
Straight Plug
50ohm
Brass
4GHz
-
Documents techniques (3)
