112420
RF / Coaxial Connector, BNC Coaxial, Straight Bulkhead Plug, Solder, 50 ohm, Brass
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 9,980 $ |
| 5+ | 9,780 $ |
| 10+ | 9,570 $ |
| 25+ | 9,160 $ |
| 50+ | 8,330 $ |
| 100+ | 7,620 $ |
| 250+ | 7,550 $ |
Informations produit
Aperçu du produit

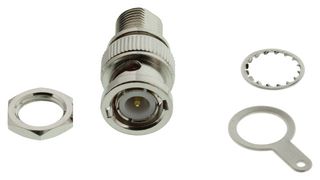

The 112420 is a straight solder BNC Plug with gold-plated brass contacts. This connector is made of brass with nickel-plated finish and a Delrin insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50Ω BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.
- Bulkhead-front mount
- Standard polarity
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
Applications
RF Communications, Communications & Networking, Automotive, Computers & Computer Peripherals, Medical, Sensing & Instrumentation
Spécifications techniques
BNC Coaxial
Solder
-
Gold Plated Contacts
Panel Mount
Lead
Straight Bulkhead Plug
50ohm
Brass
4GHz
-
