82-202 (UG-21D/U)
RF / Coaxial Connector, N Type, Straight Plug, Solder, 50 ohm
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 38,740 $ |
| 5+ | 37,300 $ |
| 10+ | 35,000 $ |
| 25+ | 33,540 $ |
| 50+ | 31,430 $ |
| 100+ | 30,390 $ |
| 250+ | 28,720 $ |
Informations produit
Aperçu du produit

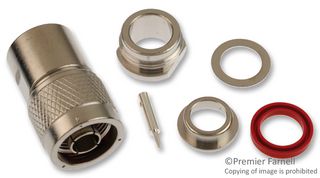

The 82-202 (UG-21D/U) is a N-type straight Clamp Plug with silver-plated brass contacts, nickel-plated brass body and a PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393, RG-8, RG-87, RG-8A, RG-9, RG-9A and RG-9B cable.
- Threaded coupling mechanism
- Standard polarity
- Standard thread direction
- 1500V Peak voltage rating
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
Applications
RF Communications, Communications & Networking, Sensing & Instrumentation, Wireless
Spécifications techniques
N Type
Solder
RG8, RG9, RG144, RG165, RG213, RG214, RG216, RG225
Gold Plated Contacts
Cable Mount
No SVHC (08-Jul-2021)
Straight Plug
50ohm
Brass
11GHz
-
Documents techniques (2)
Produits associés
6 produit(s) trouvé(s)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
