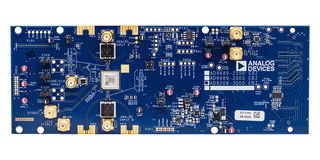

AD9208-3000EBZ

AD9208-3000EBZ supports the AD9208-3000, a 14bit, 3GSPS dual analog-to-digital converter (ADC). The device has an on-chip buffer and a sample-and-hold circuit designed for low power, small size, and ease of use. This device is designed support direct RF sampling analog signals of up to 5GHz. The 3dB bandwidth of the ADC input is greater than 9GHz. The AD9208 is optimized for wide input bandwidth, high sampling rate, excellent linearity, and low power in a small package.

• Full featured evaluation board for the AD9208-3000
• Wide band balun driven input
• No external supply needed, uses 12V-1A and 3.3V-3A supplies from FMC connector
• Single software interface for device control and analysis through ACE
• Sample rate of 3GSPS
