DC2609A

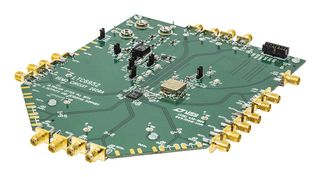

DC2609A is a LTC6952 ultra-low Jitter, 4.5GHz PLL with 11 outputs and JESD204B support demonstration board. Demonstration circuit 2609A features the LTC6952, an ultra-low Jitter, 4.5GHz PLL with 11 outputs and JESD204B support. By default, the DC2609A is powered from two supplies. The 9V-12V supply input powers the on-board reference and VCO circuitry, along with the LTC6952 5V supply pin. The 4V-6V supply input powers the LTC6952 3.3V supply pins. A reduced power option is provided that allows the LTC6952’s output supply pins to connect to an LTC Silent Switcher® and the LTC6952 input supply pins to connect to a low noise LDO. The LTC6952’s EZSync™ and SYSREF request functions are made available via the LTC6952 SPI interface or the EZS_SRQ SMA/turret connectors.
