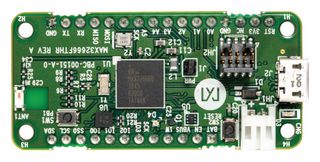

MAX32666FTHR#

MAX32666FTHR# board is a rapid development platform to help engineers quickly implement battery optimized Bluetooth® 5 solutions with the MAX32666 Arm® Cortex®-M4 processor with FPU. The board also includes the MAX1555 1-Cell Li+ battery charger for battery management. The form factor is a small 0.9in by 2.0in dual-row header footprint that is compatible with breadboards and off-the-shelf peripheral expansion boards. The board also includes a variety of peripherals, such as a micro SD card connector, 6-axis accelerometer/gyro, RGB indicator LED, and pushbutton. This platform provides power-optimized flexible for quick proof-of-concepts and early software development. Typical applications include connected home, gaming devices, hearables, industrial sensors, payment/fitness/medical wearables and telemedicine.

• Dual Arm cortex-M4F, 96MHz, 1MB flash memory, 560KB SRAM, 3 x 16KB cache
• High-speed USB 2.0, 3 x QSPI, 3 x I2C, 3 x UARTS, SD/SDIO 3.0
• 48 GPIO, 8 input, 10bit ADC
• MAX1555 1-cell li+ battery charger
• Breadboard compatible headers, 10pin cortex debug header, microUSB connector, microSD card connector
• RGB indicator LED, user pushbutton, 6-axis accelerometer/gyro, Bluetooth surface mount antenna
• SWD/MAXDAP debug interface
