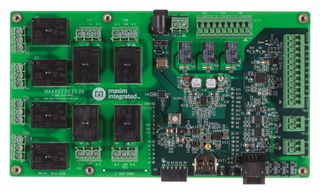

MAXREFDES130#

Arduino® form factor shield compatible with ARM® mbed™ and Arduino platforms providing a complete reference for prototyping next building automation design. This design includes eight 0VDC-10VDC analogue outputs, one 4-20mA output, one 4-20mA input, eight nonlatching relays, three latching relays, an RTC and 1-Wire® master. The MAXREFDES130# works well with one or more of the MAXREFDES131#, the 1-Wire®, Grid EYE® sensor to make a complete building automation solution. Suitable for use in building automation, IoT, animatronics and holiday displays.

• Arduino compatible
• ARM mbed compatible
• AC load switching
• Latching relays for thermostat control
• RTC
• Accelerated development time
• Flexible analogue for multiple configurations
• Ease of use
