1 761 En Stock
| Quantité | Prix |
|---|---|
| 1+ | 9,800 $ |
| 10+ | 9,470 $ |
| 25+ | 9,180 $ |
| 50+ | 8,550 $ |
| 100+ | 7,890 $ |
| 250+ | 6,980 $ |
| 500+ | 6,180 $ |
| 1000+ | 5,870 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
9,80 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantAPEM
Réf. FabricantTP33W0080
Code Commande26M4308
Gamme de produitTP Series
Fiche technique
Pushbutton Switch TypeStandard
Product RangeTP Series
Panel Cutout Diameter-
Contact Voltage AC Nom48V
Contact ConfigurationSPST-NO
Switch OperationOff-(On)
Contact Voltage DC Nom48V
Contact Current Max-500mA
Pushbutton Actuator StylePlunger
Actuator / Cap ColourBlack
Contact Current AC Max-
Contact Voltage VAC20V
Contact Current DC Max-
Contact Voltage VDC20V
IP Rating-
IP Rating-
Switch MountingThrough Hole
Switch TerminalsPC Pin
Illumination ColorNon Illuminated
Panel Cutout (H x W)-
SVHCNo SVHC (16-Jul-2019)
Aperçu du produit

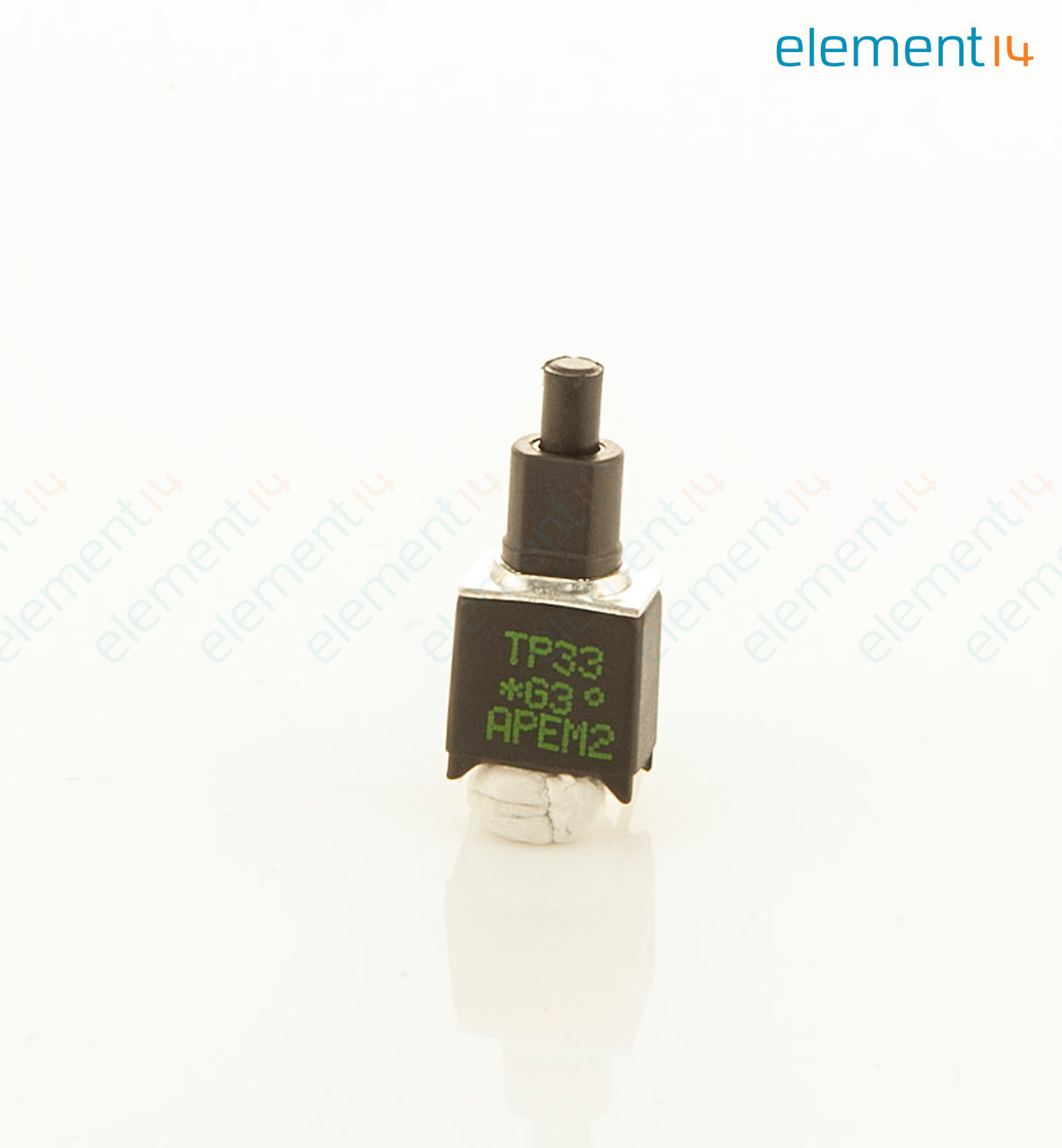

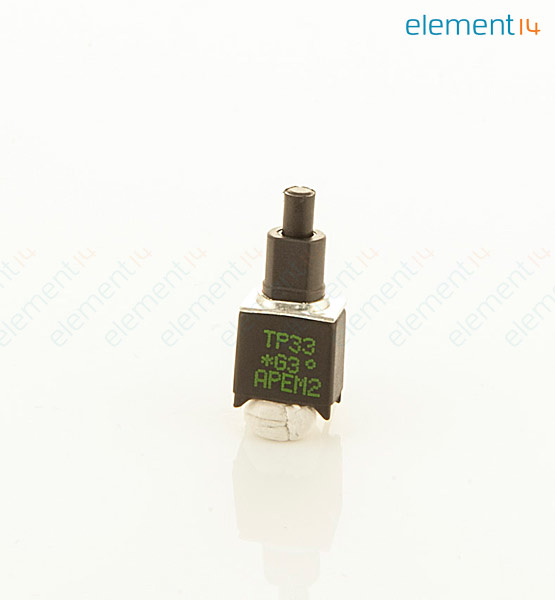

The TP33W0080 is a single-pole single-throw tiny washable momentary Pushbutton Switch with right angle, horizontal mounting terminals, gold-plated brass contact, PBT case, glass-filled polyamide actuator and epoxy terminal seal.
- O-ring seal between actuator and bushing
- 50mΩ Maximum contact resistance
- 1000MΩ at 500VDC Insulation resistance
- 60000 Cycles electrical life at full load
- -30 to +85°C Operating temperature range
Applications
Industrial
Spécifications techniques
Pushbutton Switch Type
Standard
Panel Cutout Diameter
-
Contact Configuration
SPST-NO
Contact Voltage DC Nom
48V
Pushbutton Actuator Style
Plunger
Contact Current AC Max
-
Contact Current DC Max
-
IP Rating
-
Switch Mounting
Through Hole
Illumination Color
Non Illuminated
SVHC
No SVHC (16-Jul-2019)
Product Range
TP Series
Contact Voltage AC Nom
48V
Switch Operation
Off-(On)
Contact Current Max
-500mA
Actuator / Cap Colour
Black
Contact Voltage VAC
20V
Contact Voltage VDC
20V
IP Rating
-
Switch Terminals
PC Pin
Panel Cutout (H x W)
-
Documents techniques (1)
Produits de remplacement pour TP33W0080
1 produit trouvé
Produits associés
4 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (16-Jul-2019)
