AES-FMC-MC4-AR0231AT-G

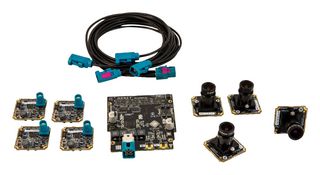

AES-FMC-MC4-AR0231AT-G is a quad AR0231AT camera FMC bundle combines Avnet Multi-Camera FMC mod, four AR0231AT camera mod with GMSL serialization and a cable assembly as a complete add-on solution for vision-guided applications. The AR0231AT image sensor is an automotive-grade image sensor which uses latest 3.0 micron BSI pixel with ON Semiconductor’s DR-Pix ™ technology, which offers dual conversion gain for improved performance under all lighting conditions. It includes LFM and achieves 120dB of HDR with 4-exposure HDR. The quad AR0231AT camera FMC bundle is meant to be used with Xilinx Zynq-UltraScale+ FMC carriers, including ZCU102, the ZCU104, as well as Avnet UltraZed EV SOM + Carrier. The quad camera FMC bundle is fully integrated to the Xilinx reVISION stack, including SDSoC platforms and design examples. The provided Linux-based reference designs support ON Semiconductor MARS based camera modules, including MAX96705 GMSL serializer board and AR0231AT image sensor board.

• Low Pin Count (LPC) FMC module
• Quad GMSL deserializer, from Analog Devices (MAX9286)
• Support for four (4) ON Semiconductor image sensors (AR0231AT)
• High-speed FAKRA mini (HFM) connectors
