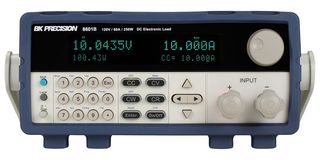

8601B

8600B Series programmable DC electronic load in a compact benchtop form factor. With fast transient operation speeds and high 16bit measurement resolution. Standalone DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers and photovoltaic arrays.

• 250W power, 0 to 120V operating voltage, 0 to 60A rated current, 2U half-rack form factor
• CC/CV/CR/CW operating modes and remote sense
• Store and recall up to 100 setups
• Adjustable slew rate in CC mode
• Flexible triggering options via front panel, external input, timer or bus
• Built-in battery test function with voltage level, capacity level and timer stop conditions
• Test modes to validate the OCP/OPP protection functions of a power supply
• CR-LED mode to simulate the loading behaviour of typical LEDs
• Analog current control and monitoring, thermostatically controlled fan
• OVP/OCP/OPP/OTP including local and remote reverse voltage (LRV/RRV) protection

Contenu

Programmable DC electronic load, User manual, Power cord, Certificate of calibration.
