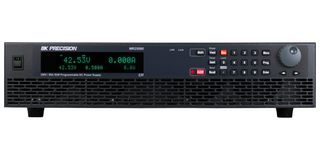

MR25080

• Single output high voltage DC power supply provides 0~250VDC output from 0~80A, 5kW total
• Multi-ranging operation, capable of replacing multiple fixed range power supplies
• Compact 2U form factor
• Standard USB (USBTMC-compliant), RS232, GPIB and LXI compliant LAN interfaces
• Galvanically isolated analog control and monitoring interface
• Protection features: OVP, OCP, OPP, OTP, foldback protection mode, and key-lock function
• Adjustable voltage and current slope (rise and fall time)
• List mode: 10 user-defined setups with up to 100 programmable steps each
• Built-in SAS function for storage of up to 101 I-V curves with Voc, Isc, Vmp, Imp, parameters and 4096-point table
• Remote Sense to compensate for voltage drop
• Master/Slave mode operation provides up to 50 kW with 10 units connected in parallel
• Control up to 30 power supplies from one PC
• Soft panel software for remote control, test sequence generation, and data logging included
• cTUVus certification mark demonstrates compliance with CSA and UL safety standards
• Hardwired AC input requires 200~240VAC, 47Hz~63Hz input, 6000VA

Applications

Test & Measurement, Energy, Power Supplies

Contenu

This product includes removable hardwired AC power cord, test report & certificate of calibration.
