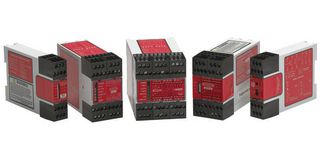

GM-FA-10J

The GM-FA-10J is a 2-pole Gate Monitoring Safety Module. 1NO-1NC contact configuration. It is used to verify the proper operation of coded magnetic safety switches and positive-opening safety switches by monitoring a normally open (NO) and a normally closed (NC) contact from each switch. It can also be used to monitor and verify the correct state of two redundant current-sourcing PNP signals. In a typical application, two safety switches (individually mounted) indicate the open or closed status of a gate, moveable guard or barrier. Plug-in terminal blocks. If terminal blocks are swapped, Module remains functional with no loss of safety function.

• Monitors one or two safety switches for a contact failure or wiring fault
• Two output switching channels for connection to control-reliable power interrupt circuits
• Auto reset or monitored manual reset

Applications

Industrial, Power Management, Automation & Process Control
