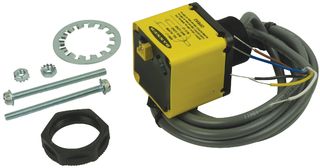

OPBA2

The OPBA2 is a standard Power Block for use with OMNI-BEAM modular photoelectric sensors. It provides the regulated low-voltage DC power required to runs the circuitry of the sensor head and logic module (if one is used). It has two solid-state output circuits, one for switching the load and the other for the alarm of the DATA self diagnostic system. All standard OMNI-BEAM power block is epoxy-encapsulated and rated for -40 to +70°C (-40 to +158°F). It feature limit-switch style cross-hole design for front, back or side mounting, plus a 30mm threaded hub for swivel bracket or through-hole mounting. Models include prewired cable or quick-disconnect (QD) fitting.

• Solid-state AC relay output
• 105 to 130VAC Input
• 6ft 5-conductor PVC-jacketed prewired cable

Applications

Sensing & Instrumentation
