1030A 0061000

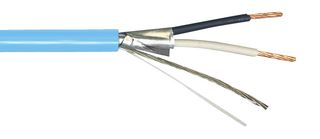

The 1030A 0061000 is a 1-pair Shielded Cable with 16AWG twisted pair stranded bare copper conductors and a PVC insulation. This 1030A series 300V multi-conductor power-limited tray cable comes with a Beldfoil® aluminum foil-polyester tape shield (100% coverage) and a light blue PVC jacket. Belden paired-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. Belden meets the demand for shielding technology with innovative designs in foil and braid configurations like the Beldfoil®, for highly effective EMI and RFI protection and 100% shield coverage for improved protection against radiated emissions and ingress at audio and radio frequencies. The Beldfoil® shield is lightweight, strong, flexible and thin, yet extremely effective.

• 177.928N Maximum recommended pulling tension
• 0.62339µH/m Nominal inductance
• 200.141pF/m Nominal capacitance conductor to conductor
• 12.1397Ω/km at 20°C Nominal conductor DC resistance (DCR)

Applications

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
