1508A B591000

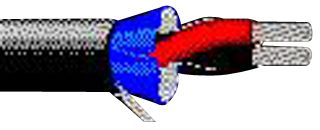

Multipair Cable, Audio Control, Shielded, 1 Pair, 24 AWG, 1000 ft, 304.8 m
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Impossible de récupérer les informations sur la disponibilité
Informations produit
FabricantBELDEN
Réf. Fabricant1508A B591000
Code Commande04F4530
Fiche technique
Cable ShieldingShielded
No. of Pairs1 Pair
Wire Gauge24AWG
Conductor Area CSA-
Reel Length (Imperial)1000ft
Reel Length (Metric)304.8m
Jacket ColorBlack
No. of Max Strands x Strand Size7 x 32AWG
Voltage Rating300V
Jacket MaterialPVC
Conductor MaterialTinned Copper
External Diameter3.327mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Aperçu du produit
The 1508A B591000 is a 1000ft 1-pair 2-conductor Shielded Cable with tinned copper conductors with polyolefin insulation. It has twisted pairs and overall shielded with 100% aluminium foil-polyester tape coverage.
- 16.5lb Maximum recommended pulling tension
- 50Ω Impedance
- 1.05A at 25°C Current per conductor
- -20 to 60°C Operating temperature range
Applications
Computers & Computer Peripherals, Communications & Networking
Spécifications techniques
Cable Shielding
Shielded
Wire Gauge
24AWG
Reel Length (Imperial)
1000ft
Jacket Color
Black
Voltage Rating
300V
Conductor Material
Tinned Copper
Product Range
-
No. of Pairs
1 Pair
Conductor Area CSA
-
Reel Length (Metric)
304.8m
No. of Max Strands x Strand Size
7 x 32AWG
Jacket Material
PVC
External Diameter
3.327mm
SVHC
No SVHC (10-Jun-2022)
Documents techniques (1)
Produits associés
5 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (10-Jun-2022)
