2413F 0051000
Networking Cable, DataTwist, Shielded, Cat6, 23 AWG, 1000 ft, 304.8 m
| Quantité | Prix |
|---|---|
| 1+ | 2 313,630 $ |
| 5+ | 2 224,160 $ |
| 10+ | 2 147,460 $ |
Informations produit
Aperçu du produit

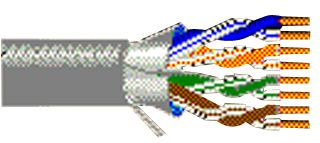

The 2413F 0051000 is a 4-pair 1000ft Shielded Cable with 23AWG solid bare copper conductors and polyolefin insulation. This CAT6 plenum-CMP non-bonded pair premise horizontal ScTP multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield and Flamarrest® low smoke green PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 111.205N Maximum recommended pulling tension
- 45.934pF/m Nominal mutual capacitance
- 72% Nominal velocity of propagation
- 8.2Ω/km at 20°C Nominal conductor DC resistance (DCR)
- -20 to 75°C Operating temperature range
Applications
Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Spécifications techniques
Shielded
23AWG
1000ft
4 Pair
Solid
LSPVC
7.239mm
No SVHC (10-Jun-2022)
Cat6
-
304.8m
Green
300V
Copper
-
Documents techniques (2)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
