3084A T5U500
Multipair Cable, DeviceBus®, Shielded, 2 Pair, 24 AWG, 0.21 mm², 500 ft, 152.4 m
| Quantité | Prix |
|---|---|
| 1+ | 2 956,090 $ |
| 2+ | 2 807,570 $ |
| 3+ | 2 723,460 $ |
| 5+ | 2 620,290 $ |
Informations produit
Aperçu du produit

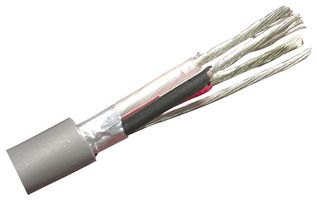

The 3084A T5U500 is a 2-pair Shielded Cable with PVC insulated 22AWG and foam polyethylene insulated 24AWG stranded tinned copper conductors. This multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield and gray sunlight/oil-resistant PVC jacket. This DeviceBus® for ODVA DeviceNet™. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 289.133N Maximum recommended pulling tension
- 10.4992Ω/km at 20°C Nominal conductor DC resistance (DCR)
- -20 to 75°C Operating temperature range
Applications
Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Spécifications techniques
Shielded
24AWG
500ft
Gray
600V
Tinned Copper
DeviceBus Series
2 Pair
0.21mm²
152.4m
19 x 36AWG, 19 x 34AWG
PVC
6.985mm
No SVHC (10-Jun-2022)
