5200FE 0081000
Multiconductor Cable, Security Audio, Shielded, 2 Conductor, 16 AWG, 1000 ft, 304.8 m
| Quantité | Prix |
|---|---|
| 1+ | 946,000 $ |
| 5+ | 873,230 $ |
| 10+ | 811,650 $ |
Informations produit
Aperçu du produit

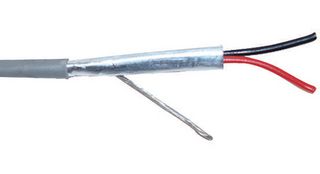

The 5200FE 0081000 is a 2-conductor Shielded Cable with 16AWG stranded bare copper conductors and polyolefin insulation. This multi-conductor cable comes with a Duofoil® shorting fold aluminum foil-polyester tape insulation and gray PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 380.321N Maximum recommended pulling tension
- 0.459µH/m Nominal inductance
- 190.298pF/m Nominal capacitance conductor to conductor
Applications
Commercial, Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Spécifications techniques
Shielded
16AWG
1000ft
Gray
Copper
4.674mm
-
2Conductor
-
304.8m
19 x 29AWG
PVC
300V
No SVHC (10-Jun-2022)
Documents techniques (1)
Produits de remplacement pour 5200FE 0081000
1 produit trouvé
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
