82262 877U1000
Coaxial Cable, RG62, 22 AWG, 93 ohm, 1000 ft, 304.8 m

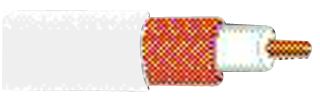

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Available to Order by Phone
Livraison estimée après confirmations des commandes.Vous serez facturé à l’expédition.
Informations produit
FabricantBELDEN
Réf. Fabricant82262 877U1000
Code Commande04F6121
Fiche technique
Coaxial Cable TypeRG62
Wire Gauge22AWG
Conductor Area CSA-
Impedance93ohm
Reel Length (Imperial)1000ft
Reel Length (Metric)304.8m
Jacket ColorNatural
Jacket MaterialLSPVC
Conductor MaterialCopper
No. of Max Strands x Strand SizeSolid
External Diameter5.18mm
Product Range-
SVHCCadmium
Aperçu du produit
The 82262 877U1000 is a Coaxial Cable with solid bare copper-covered steel conductor and FEP insulation. This RG62/U plenum coaxial cable comes with a low smoke PVC Flamarrest® jacket and bare copper braid shield (94% coverage). The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
- 65lbs Maximum recommended pulling tension
- 0.107µH/ft Nominal inductance
- 85% Nominal velocity of propagation
- 41.2Ω/1000ft at 20°C Nominal conductor DC resistance (DCR)
- 3.4Ω/1000ft at 20°C Nominal outer shield DC resistance (DCR)
- 0 to 75°C Operating temperature range
Applications
Communications & Networking
Spécifications techniques
Coaxial Cable Type
RG62
Conductor Area CSA
-
Reel Length (Imperial)
1000ft
Jacket Color
Natural
Conductor Material
Copper
External Diameter
5.18mm
SVHC
Cadmium
Wire Gauge
22AWG
Impedance
93ohm
Reel Length (Metric)
304.8m
Jacket Material
LSPVC
No. of Max Strands x Strand Size
Solid
Product Range
-
Documents techniques (1)
Produits associés
2 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :Cadmium
