9341 010500

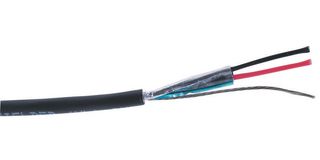

Multipair Cable, Tray, Shielded, 1 Pair, 18 AWG, 0.8 mm², 500 ft, 152.4 m
| Quantité | Prix |
|---|---|
| 1+ | 3 747,820 $ |
| 5+ | 3 602,880 $ |
| 10+ | 3 478,650 $ |
Informations produit
Aperçu du produit
The 9341 010500 is a 1-pair 500ft Shielded Cable with 18AWG stranded tinned copper conductors and PVC/nylon insulation. This 600V twisted pair multi-conductor tray cable comes with a Beldfoil® aluminum foil-polyester tape shield (100% coverage) and black PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 26lbs Maximum recommended pulling tension
- 0.19µH/ft Nominal inductance
- 43pF/ft Nominal capacitance conductor to conductor
- 5.86Ω/km at 20°C Nominal conductor DC resistance (DCR)
Applications
Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Spécifications techniques
Shielded
18AWG
500ft
Black
600V
Tinned Copper
-
1 Pair
0.8mm²
152.4m
19 x 30AWG
PVC
7.01mm
No SVHC (10-Jun-2022)
