9502 060100
Multipair Cable, Computer, Shielded, 2 Pair, 24 AWG, 100 ft, 30.48 m
Vous en voulez davantage ?
| Quantité | Prix |
|---|---|
| 1+ | 354,730 $ |
| 5+ | 341,010 $ |
| 10+ | 329,250 $ |
Informations produit
Aperçu du produit

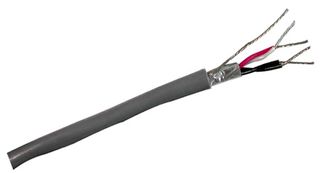

The 9502 060100 is a 100ft 2-pair shielded Computer Cable with 24AWG stranded (7 x 32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® aluminum foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232 applications.
- 30pF/ft Conductor to conductor nominal capacitance
- 50pF/ft Conductor to other conductor and shield nominal capacitance
- 24Ω/1000ft at 20°C Nominal conductor DC resistance
- 17Ω/1000ft at 20°C Nominal outer shield DC resistance
- UL1685 FT4 Loading flame tested
Applications
Computers & Computer Peripherals
Spécifications techniques
Shielded
24AWG
100ft
Chrome
300V
Tinned Copper
-
2 Pair
-
30.48m
7 x 32AWG
PVC
5.639mm
No SVHC (10-Jun-2022)
