9804 060100

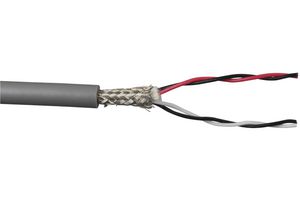

The 9804 060100 is a 2-pair Shielded Cable with 28AWG stranded tinned copper conductors and a polypropylene insulation. The 9804 series low capacitance computer cable comes with a Beldfoil® aluminum foil-polyester tape (100% coverage) plus tinned copper braid shield (90% coverage), a 28AWG stranded tinned copper conductor outer shield drain wire and a chrome PVC outer jacket. Belden paired-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. Belden meets the demand for shielding technology with innovative designs in foil and braid configurations like the Beldfoil®, for highly effective EMI and RFI protection and 100% shield coverage for improved protection against radiated emissions and ingress at audio and radio frequencies.

• Beldfoil® shield is lightweight, strong, flexible and thin, yet extremely effective
• 40lbs Maximum recommended pulling tension
• 15.5pF/ft Nominal capacitance conductor to conductor
• 66% Nominal velocity of propagation
• 64.9Ω/100ft at 20°C Nominal conductor DC resistance (DCR)

Applications

Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
