9V28050 000H100
Ribbon Cable, Vari-Twist to Flat, Unshielded, 50 Conductor, 28 AWG, 100 ft, 30.48 m

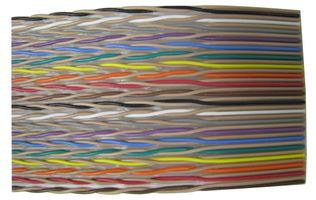

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantBELDEN
Réf. Fabricant9V28050 000H100
Code Commande37F3925
Gamme de produit9V280XX Series
Fiche technique
Available to Order by Phone
Livraison estimée après confirmations des commandes.Vous serez facturé à l’expédition.
Informations produit
FabricantBELDEN
Réf. Fabricant9V28050 000H100
Code Commande37F3925
Gamme de produit9V280XX Series
Fiche technique
Cable ShieldingUnshielded
No. of Conductors50Conductor
Wire Gauge28AWG
Conductor Area CSA-
Reel Length (Imperial)100ft
Reel Length (Metric)30.48m
Jacket ColorMulti-colored
Cable Width63.5mm
No. of Max Strands x Strand Size7 x 36AWG
Pitch Spacing1.27mm
Voltage Rating300V
Conductor MaterialTinned Copper
Jacket MaterialPVC
Ribbon Cable TypeFlat Ribbon Cable
Product Range9V280XX Series
SVHCNo SVHC (10-Jun-2022)
Aperçu du produit
The 9V28050 000H100 is a 50-core unshielded Vari-Twist® flat Ribbon Cable with tinned copper conductor and a PVC insulator. It is designed to reduce crosstalk in the balanced mode by twisting the pairs, but can be mass-terminated in the flat sections with standard IDC connectors.
- <gt/>10000MΩ Insulation resistance
- 64% Nominal velocity of propagation
- 68.2Ω/1000ft Maximum Nominal conductor DC resistance (DCR)
Applications
Computers & Computer Peripherals
Spécifications techniques
Cable Shielding
Unshielded
Wire Gauge
28AWG
Reel Length (Imperial)
100ft
Jacket Color
Multi-colored
No. of Max Strands x Strand Size
7 x 36AWG
Voltage Rating
300V
Jacket Material
PVC
Product Range
9V280XX Series
No. of Conductors
50Conductor
Conductor Area CSA
-
Reel Length (Metric)
30.48m
Cable Width
63.5mm
Pitch Spacing
1.27mm
Conductor Material
Tinned Copper
Ribbon Cable Type
Flat Ribbon Cable
SVHC
No SVHC (10-Jun-2022)
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (10-Jun-2022)
