MRG5801.10100
Coaxial Cable, RG58, Tinned Copper, 4.95 mm, 50 ohm, Black

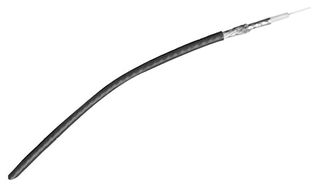

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
3 En Stock
| Quantité | Prix |
|---|---|
| 1+ | 566,610 $ |
| 5+ | 527,430 $ |
| 10+ | 494,270 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
566,61 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantBELDEN
Réf. FabricantMRG5801.10100
Code Commande58M9381
Fiche technique
Coaxial Cable TypeRG58C
Conductor Area CSA-
Conductor MaterialCopper
External Diameter4.95mm
Impedance50ohm
Jacket ColorBlack
Jacket Material-
No. of Max Strands x Strand Size19 x 0.18mm
Product Range-
Reel Length (Imperial)328ft
Reel Length (Metric)100m
Wire Gauge-
SVHCNo SVHC (23-Jan-2024)
Aperçu du produit
The MRG5801.00100 is a Coaxial Communication Cable with a stranded tinned copper inner conductor and a solid PE dielectric. The coaxial cable comes with a black LSNH (according the European Standard HD 624) sheath and annealed tinned copper shield. The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
- 50 ±2Ω Mean characteristic impedance
- <gt/>40dB Regularity of impedance
- ≤36Ω/km DC resistance inner conductor
- 100 ±2pF/m Capacitance
- 66% Nominal velocity of propagation
- -15 to 70°C Storage/operating temperature range
Applications
Communications & Networking, Defence, Military & Aerospace
Spécifications techniques
Coaxial Cable Type
RG58C
Conductor Material
Copper
Impedance
50ohm
Jacket Material
-
Product Range
-
Reel Length (Metric)
100m
SVHC
No SVHC (23-Jan-2024)
Conductor Area CSA
-
External Diameter
4.95mm
Jacket Color
Black
No. of Max Strands x Strand Size
19 x 0.18mm
Reel Length (Imperial)
328ft
Wire Gauge
-
Documents techniques (1)
Produits associés
4 produit(s) trouvé(s)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (23-Jan-2024)
