Imprimer la page
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.

| Fabricant | CAL TEST ELECTRONICS |
|---|---|
| Réf. Fabricant | CT2017-0Copie |
| Délai d’approvisionnement standard du fabricant | 11 semaines |
| Code Commande | 52AC2122 |
| Votre numéro de pièce |
14 En Stock
Vous en voulez davantage ?
Livraison standard gratuite
pour les commandes de plus de 200$
| Quantité | Prix |
|---|---|
| 1+ | 16,800 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
16,80 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
| Fabricant | CAL TEST ELECTRONICS |
|---|---|
| Réf. Fabricant | CT2017-0Copie |
| Délai d’approvisionnement standard du fabricant | 11 semaines |
| Code Commande | 52AC2122 |
| Gender | Plug(Voir les connecteurs associés) |
| Connector Mounting | Cable Mount |
| Current Rating | 36A |
| Voltage Rating | 1.2kV |
| Contact Plating | Nickel Plated Contacts |
| Connector Colour | Black |
| Contact Material | Beryllium Copper |
| Contact Termination Type | Clamp |
| Product Range | - |
| SVHC | No SVHC (17-Jan-2023) |
Aperçu du produit

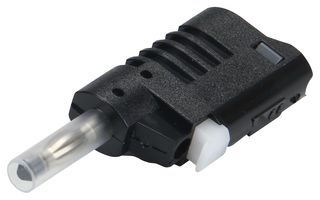

CT2017-0 is a black, do-it-yourself stacking banana plug featuring a solderless clamp connection. Simply depress the button, insert the stripped wire, release it to secure the wire, and the plug is ready for use.
- Polyamide (nylon) insulator
- Plug is made of brass with nickel plating and uses a BeCu, nickel-plated spring contact
- 33V AC, 70V DC (IEC)/1,200V (non-handheld) maximum voltage, 36A maximum current
- Temperature range from -20°C to 80°C
- Suitable for 12AWG wire gauge
- Plug has spring loaded cover for added safety
Spécifications techniques
| Gender | Plug |
|---|---|
| Current Rating | 36A |
| Contact Plating | Nickel Plated Contacts |
| Contact Material | Beryllium Copper |
| Product Range | - |
| Connector Mounting | Cable Mount |
|---|---|
| Voltage Rating | 1.2kV |
| Connector Colour | Black |
| Contact Termination Type | Clamp |
| SVHC | No SVHC (17-Jan-2023) |
Documents techniques (1)
Produits associés
8 produit(s) trouvé(s)
Législation et Questions environnementales
| US ECCN: | EAR99 |
|---|---|
| EU ECCN: | Unknown |
| Conforme RoHS : | Oui RoHS |
| Conforme à la norme RoHS Phthalates: | Oui RoHS |
| SVHC : | No SVHC (17-Jan-2023) |
| Télécharger le certificat de conformité du produit | Certificat de conformité du produit |
