13 En Stock
| Quantité | Prix |
|---|---|
| 1+ | 290,490 $ |
| 10+ | 251,540 $ |
| 25+ | 242,250 $ |
| 50+ | 232,150 $ |
| 100+ | 213,870 $ |
| 250+ | 188,610 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
290,49 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantCAREL
Réf. FabricantIR33W7LR20
Code Commande26R6029
Gamme de produitIR33
Fiche technique
Thermocouple TypeNTC, PTC, Pt1000
Operating Temperature Max50°C
Operating Temperature Min0°C
Temperature Accuracy ±-
Output Voltage Max250VAC
Output Voltage Min-
Product RangeIR33
SVHCNo SVHC (27-Jun-2024)
Aperçu du produit

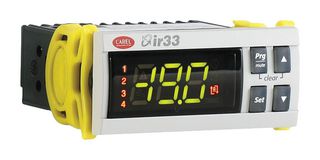

The IR33W7LR20 from Carel is a universal electronic digital temperature controller with 2 relay output. IR33 controller can be programmed quickly using the optional programming key and reduces the risk of errors. Controller features a simple user interface, two independent control loops and it is housed in a compact panel mounting enclosure. This controller can be connected to a network for monitoring and programming using the optional RS485 serial interface.
- NTC/PTC/PT1000 input
- Auxiliary power of 12VAC to 24VAC, 12VDC to 30VDC
- Frequency range from 50Hz to 60Hz
- Plug-in terminals
- Product weight of 220g
- CE marked
- IP65 enclosure case
- Operating temperature range from -10°C to 50°C
- Humidity of <90% rH (non-condensing)
Spécifications techniques
Thermocouple Type
NTC, PTC, Pt1000
Operating Temperature Min
0°C
Output Voltage Max
250VAC
Product Range
IR33
Operating Temperature Max
50°C
Temperature Accuracy ±
-
Output Voltage Min
-
SVHC
No SVHC (27-Jun-2024)
Documents techniques (2)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (27-Jun-2024)
