19081355
LED Panel Mount Indicator, Black Chrome Bezel, Green, 24 V, 8 mm, 17 mA, 1.3 cd, IP67
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 7 semaine(s)
Informations produit
FabricantCML INNOVATIVE TECHNOLOGIES
Réf. Fabricant19081355
Code Commande85R9736
Fiche technique
LED ColorGreen
Operating Voltage24V
Mounting Hole Dia8mm
Forward Current If17mA
Luminous Intensity1.3cd
IP / NEMA RatingIP67
Product Range-
SVHCNo SVHC (21-Jan-2025)
Aperçu du produit

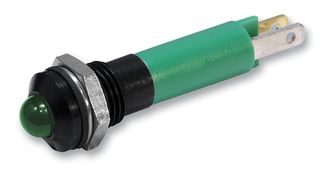

The 19081355 is a green panel-mount LED Indicator for a 8mm mounting hole, manufactured with high brightness coloured diffused 5mm LED or lens and a resistor. This LED or lens is fitted in prominent (exterior) high quality black chrome bezel. Connection is usually by Faston tab terminals 2.8 x 0.8mm. This high-grade LED panel mount indicator is a perfect alternative to common incandescent indicator light in relation to price and quality.
- Shockproof and vibration-proof
- Extremely long lifetime
- Easy to install
- High degree of protection
- Low power consumption
- Anode (+) brass terminals
- Cathode (-) tinned terminals
- Sunlight visibility indicator
Applications
Industrial, Signalling
Contenu
LED indicator, Fixing nut and Washer.
Spécifications techniques
LED Color
Green
Mounting Hole Dia
8mm
Luminous Intensity
1.3cd
Product Range
-
Operating Voltage
24V
Forward Current If
17mA
IP / NEMA Rating
IP67
SVHC
No SVHC (21-Jan-2025)
