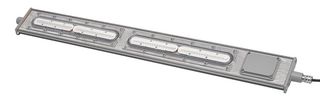

DLL4/UNV1 S903 TF

DLL4/UNV1 S903 TF is a Pauluhn™ DLL series linear LED luminaire for land-based drilling. It is specifically designed to replace fluorescent T12, T8 and T5HO lighting on land-based and offshore drilling platforms. The rugged and durable design features the industry’s most versatile and flexible mounting options. It is the ideal solution for high vibration, impact and hose down in drilling applications. It is engineered to stand up to the demanding conditions faced on land-based drilling rigs. The DLL stands up to high vibration, hose down, shock and impact, while delivering long life and high-lumen performance for up to 20 years. Typical applications are land-based and offshore rigs, areas include derrick, mast, SCR house, top drive, operator's house, power and pump stations. standard certifications and approvals are class I, division 2, groups A, B, C, D, class II, division 2, groups F, G, class I, zone 2, class III, NEMA 4X; IP66 (NEC), UL844, UL1598, UL1598A, UL924, C22.2 No. 137.

• Low profile fixture (<3" height), 2000psi high pressure hose rated
• Wide and narrow optics for uniform illumination in control room and drill mast
• Four points of secondary retention, high vibration resistance
• Emergency battery back-up (90minutes) and surge protection options (up to 10KV)
• 5 year fixture warranty, pull wire included in fixture
• 50/60Hz frequency, 100-277VAC; 108-250VDC voltage rating
• 0.92 power factor, <20% THD
• 4foot length, 7900lumens
• Wide (120°) optics, clear polycarbonate lens
• Ambient operating temperature range from -40°C to +65°C (standard model)
