PJ-12V150WCRA
AC/DC Enclosed Power Supply (PSU), 10.8V to 13.2V, ITE, 1 Outputs, 150 W, 12 V, 12.5 A
| Quantité | Prix |
|---|---|
| 10+ | 124,460 $ |
| 25+ | 112,350 $ |
| 50+ | 104,280 $ |
| 100+ | 99,100 $ |
| 250+ | 96,220 $ |
Informations produit
Aperçu du produit

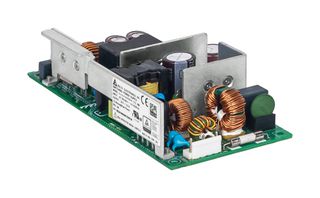

PJ-12V150WCRA is a PJ series 150W AC to DC power supply comes with universal AC input at 85VAC to 264VAC. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF > 0.97 and fulfills Harmonic Current Emission according to IEC/EN/BS EN 61000-3-2. The PJ series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN/BS EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used.
- Single phase power supply
- Rated output voltage is 12VDC
- Rated output current is 12.50A
- Enclosed type
- With remote ON/OFF
- Delta Standard
- Long life capacitors
- Convection cooling
- Dimension (L x W x H) is 7.4inch x 3.34inch x 1.8inch
Spécifications techniques
ITE
150W
12.5A
-
-
-
Adjustable, Fixed
To Be Advised
1Outputs
12V
-
-
-
85V AC to 264V AC
PJ Series
Documents techniques (2)
Législation et Questions environnementales
RoHS
RoHS
Certificat de conformité du produit
