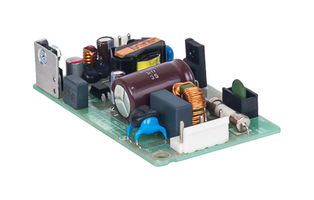

PJ-5V15WCNA

PJ-5V15WCNA is a PJ series 15W AC to DC power supply comes with universal AC input at 85VAC to 264VAC. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. It fulfills Harmonic Current Emission according to IEC/EN/BS EN 61000-3-2. The PJ series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN/BS EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used.

• Single phase power supply
• Rated output voltage is 5VDC
• Rated output current is 3A
• Enclosed type
• No remote ON/OFF
• Delta Standard
• Long life capacitors
• Convection cooling
• Dimension (L x W x H) is 4.2inch x 2.3inch x 1.25inch
