19662

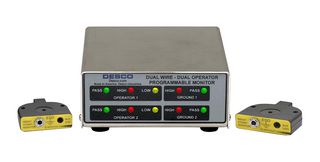

19662 dual-wire dual operator monitor has two operators and two ESD work surfaces eliminating the need for periodic testing and record keeping of wrist straps. The dual-wire dual operator monitor uses low-voltage steady state DC continuous-loop technology to continuously monitor (versus pulsed or intermittent) dual-wire wrist strap functionality. Independent audio and visual alarm conditions identify the status of the work surfaces and operators. Two operator remotes with 10 foot cables are included for use at adjacent workstations. Each monitor is calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology (NIST) and includes a NIST certificate.

• Dual conductor resistance technology
• Adjustable 5V or 8V operator test voltage
• Adjustable (10 or 35megohms) operator upper test limits
• <1 second alarm response time
• Replaceable operator remote terminals
• Calibration verification
• 100-240VAC power adapter with interchangeable plugs

Contenu

1 x dual-wire dual operator monitor, 1 x power adapter 12VDC with interchangeable plugs(North America, UK/Asia, Europe), 2 x operator remotes with attached cables (1 Black, 1 White), 2 x white mat monitor cords, 1 x monitor ground cord, 1 x certificate of calibration.
