HDP24-24-31SE-L017

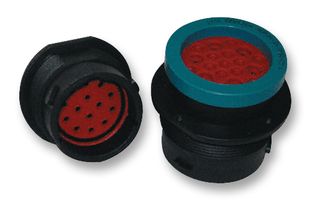

The HDP24-24-31SE-L017 is a 31-way heavy duty rated multi-pin Circular Connector with thermoplastic insert retainer, silicone rubber grommet, environmentally sealed, composite shell and socket contact. The composite thermoplastic shell is ideal in applications where chemicals can damage a connector housing. The HDP24-24-31PE-L017 features quick connect-disconnect bayonet coupling, single hole bulkhead mounting, silicone seals and a rear insertion/rear removal contact system. The Deutsch HDP series was developed to provide a solution to today's system problems found in the heavy duty trucking, equipment and transportation industries. The HDP is a cylindrical, multi-pin, sealed device utilizing crimp type contacts that are quickly and easily inserted or removed. Use of the HDP series eliminates several other common connector problems.

• Extra thin wall wire seals (blue ring)
• Backshell adapter
• Quick, fool-proof assembly, decreasing time on assembly line and eliminating miswiring
• Simple and easy to rework, decreasing down time and increasing profits to operator
• Sealed against moisture and contaminants, eliminating open wiring system
• 1500VAC at 2mA Dielectric withstanding voltage
• -55 to +125°C Operating temperature range

Applications

Logistics
