410-395

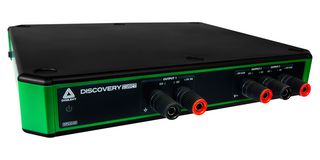

DPS3340 is a discovery USB programmable power supply. Discovery USB Programmable Power Supply (DPS3340) is a three channel variable DC programmable power supply that allows users to control the power provided to their external circuits. Providing both constant voltage and constant current modes with built in readback sensors and optional tracking for the output channels, you can confidently power your circuits according to your requirements. Driven by the free WaveForms software (Mac, Linux, and Windows compatible), the Discovery USB Programmable Power Supply can be used either as a stand-alone product or in combination with any of Digilent's Test and Measurement devices acting as its own Tool within the WaveForms software — no external triggers or multiple instances of software required.

• Output1: 1V to 5V / 10mA to 3A
• Output2 :-1V to -15V / -10mA to -500mA
• Output3: 1V to 15V / 10mA to 500mA
• Optional tracking between the -15V and 15V outputs
• Overcurrent protection options provided through WaveForms
• Auxiliary powered, 19V +/- 5%, 3.2A maximum, 60W maximum, center positive
• Dimension is 9.2in x 7.6in x 1.5in
• Operating temperature range from 0°C to 40°C (32 °F to 104 °F)

Contenu

DPS3340, One red and one black alligator clip to banana plug cable, 19V, 3.4A power supply, European and US IEC cables, USB A to B cable.
