MCC USB-DIO32HS
Digital I/O Device, 8 MSPS, 32 I/O, Data Acquisition & Control

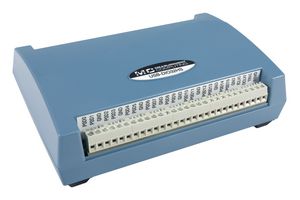

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Disponible sur commande
Délais d’approvisionnement standard du fabricant : 4 semaine(s)
| Quantité | Prix |
|---|---|
| 1+ | 804,810 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
804,81 $
Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Informations produit
FabricantDIGILENT
Réf. FabricantMCC USB-DIO32HS
Code Commande62AK4542
Fiche technique
Product TypeDigital I/O Device
Sampling Rate8MSPS
Resolution-
No. of Input Channels-
No. of Output Channels-
No. of I/O's32I/O's
Supply Voltage Range4.75V to 5.25V
Operating Temperature Range0°C to +50°C
For Use WithData Acquisition & Control
Product Range-
SVHCNo SVHC (21-Jan-2025)
Aperçu du produit
USB-DIO32HS is a high-speed synchronous digital I/O USB device and features 32 channels, up to 8 MS/s update rate, independent input and output scan clocks, and digital and pattern triggering. The 32 DIO bits are available as two 16-bit ports that are bit-configurable for input or output. Each port is configured independently, so both software polling and hardware scanning operations can be performed at the same time.
- 32 bits of bidirectional TTL digital I/O
- Pattern detection and generation
- Input scan rate up to 8MS/s, output update rate of up to 8MS/s
- 24mA source, 10mA sink output current
- External trigger input
- Screw terminals for field wiring connections
- Powered by the +5VUSB supply
- Supported Windows® 11/10/8/7/Vista®/XP, 32/64-bit, Linux®, Android™ OS
Contenu
USB-DIO32HS, USB cable, Printed insert: DAQami quick start, MCC packaging assembly/foam, etc.
Spécifications techniques
Product Type
Digital I/O Device
Resolution
-
No. of Output Channels
-
Supply Voltage Range
4.75V to 5.25V
For Use With
Data Acquisition & Control
SVHC
No SVHC (21-Jan-2025)
Sampling Rate
8MSPS
No. of Input Channels
-
No. of I/O's
32I/O's
Operating Temperature Range
0°C to +50°C
Product Range
-
