JKS-30

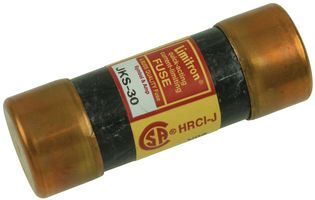

Fuse, Industrial / Power, Class J, LIMITRON JKS Series, 30 A, 600 V, 200 V, 20.6mm x 57.2mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON BUSSMANN
Manufacturer Part NoJKS-30Copy
Newark Part No.94F2093
Product RangeLIMITRON JKS Series
Your Part Number
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
| Quantity | Price |
|---|---|
| 10+ | $202.050 |
| 25+ | $191.420 |
Price for:Each
Minimum: 10
Multiple: 10
$2,020.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerEATON BUSSMANN
Manufacturer Part NoJKS-30Copy
Newark Part No.94F2093
Product RangeLIMITRON JKS Series
Technical Datasheet
Product RangeLIMITRON JKS Series
Fuse Current30A
Voltage Rating VAC600V
Voltage Rating VDC200V
Fuse Size Metric20.6mm x 57.2mm
Fuse Size Imperial13/16" x 2-1/4"
Blow CharacteristicFast Acting
SVHCNo SVHC (10-Jun-2022)
Product Overview
The JKS-30 is a 30A advanced protection class J current-limiting Fast-acting Fuse provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200kA interrupting rating complies with NEC® Section 110.9 for today's large capacity systems. Fast-acting fuse helps prevent equipment damage caused by short-circuit events. Current limitation for non-inductive circuits provides Class J current-limiting response to maximum ground fault and short-circuit conditions.
- 200kA interrupting rating provides high ratings at all circuit locations
- Economical solutions for high-fault circuits
Applications
Industrial, Commercial
Technical Specifications
Product Range
LIMITRON JKS Series
Voltage Rating VAC
600V
Fuse Size Metric
20.6mm x 57.2mm
Blow Characteristic
Fast Acting
Fuse Current
30A
Voltage Rating VDC
200V
Fuse Size Imperial
13/16" x 2-1/4"
SVHC
No SVHC (10-Jun-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (10-Jun-2022)
