FabricantEATON MOELLER
Réf. FabricantDILEM-10 240VAC
Code Commande06WX3700
Gamme de produitDILEM
Fiche technique
8 En Stock
Vous en voulez davantage ?
expédition le jour même
Commande avant 21h avec expédition standard
Quantité | Prix |
---|---|
1+ | 93,260 $ |
10+ | 85,130 $ |
25+ | 83,960 $ |
50+ | 81,900 $ |
100+ | 76,550 $ |
250+ | 68,110 $ |
500+ | 60,040 $ |
Prix pour :Each
Minimum: 1
Multiple: 1
93,26 $
Ajouter Référence Interne / Note à la ligne
Ajouté à votre confirmation de commande, à votre facture et à votre note d’expédition pour cette commande uniquement.
Ce numéro sera ajouté à la confirmation de commande, à la facture, au bon d’expédition, au courriel de confirmation Web et à l’étiquette.
Informations produit
FabricantEATON MOELLER
Réf. FabricantDILEM-10 240VAC
Code Commande06WX3700
Gamme de produitDILEM
Fiche technique
Load Current Inductive9A
Relay MountingPanel Mount
Operating Voltage690VAC
Contact Configuration3PST
No. of Poles3 Pole
Switching Power AC34kW
Switching Current AC122A
Coil Voltage VAC Nom240V
Coil Voltage VDC Nom-
Switching Power AC11.5kW
Load Current Resistive22A
Switching Current AC39A
Product RangeDILEM
SVHCNo SVHC (23-Jan-2024)
Aperçu du produit

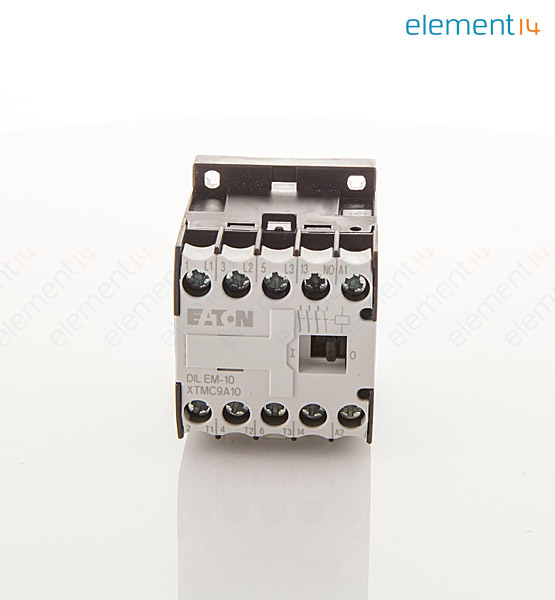

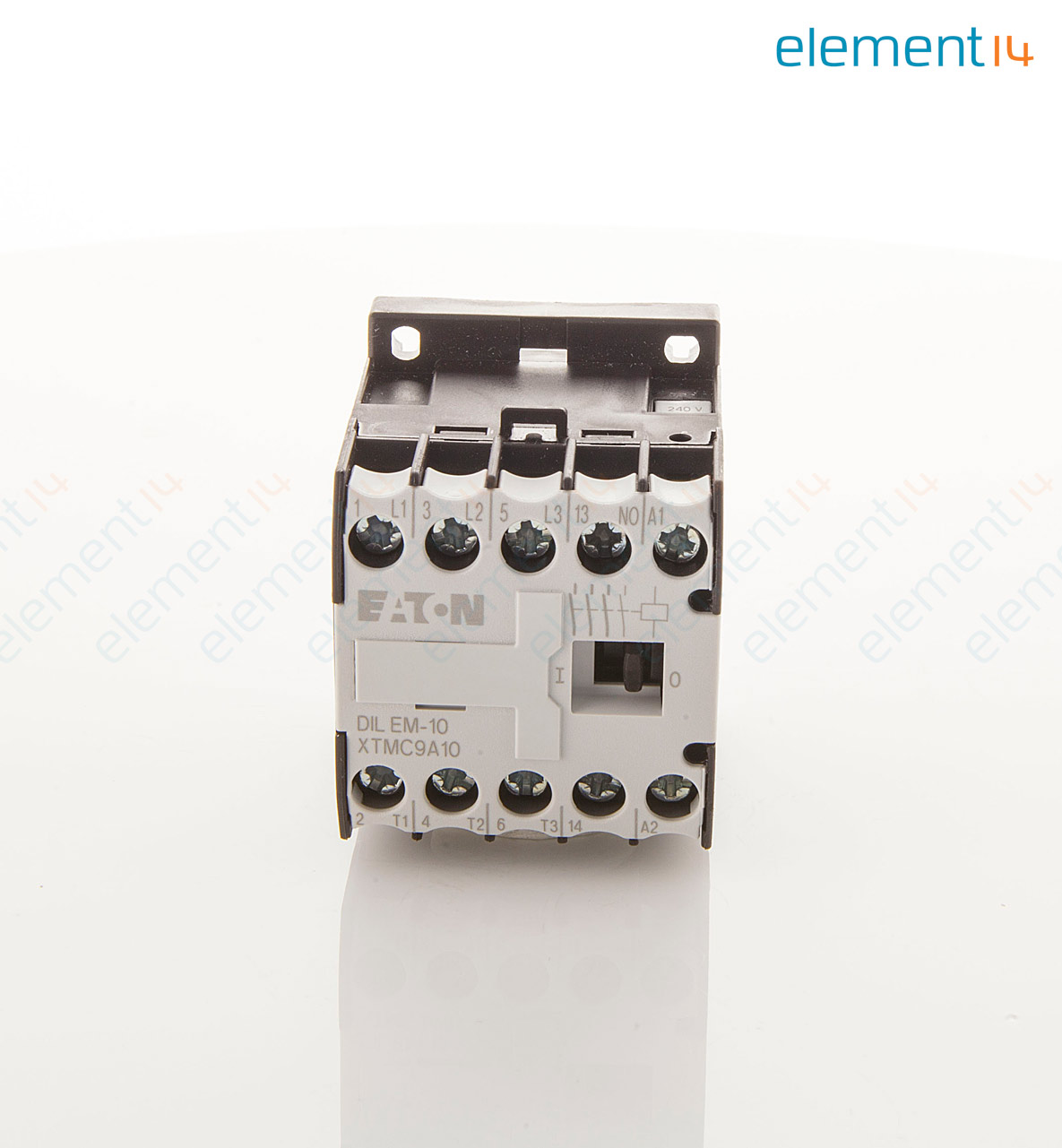

The DILEM-10 240VAC is a panel mount Energy Control DIL Contactor with 3PST contacts and screw terminals.
- 18-14AWG Solid or stranded wire
- -25 to 50°C Maximum ambient temperature range
- IP20 Protection rating
- Rated operational voltage of 690VAC
- Motor rating of 4KW (AC-3) and 3KW (AC-4) at 380V to 400V
- Approved by IEC/EN 60947-4-1, UL 508, CSA-C22.2, CE and VDE 0660 standards
- Ambient temperature range from -25°C to 50°C (open) and -25°C to 40°C (enclosed)
- IP20 degree of protection
- Breaking capacity of 90A at 380V to 400V
Applications
Motor Drive & Control, Motor Drive & Control, Industrial
Spécifications techniques
Load Current Inductive
9A
Operating Voltage
690VAC
No. of Poles
3 Pole
Switching Current AC1
22A
Coil Voltage VDC Nom
-
Load Current Resistive
22A
Product Range
DILEM
Relay Mounting
Panel Mount
Contact Configuration
3PST
Switching Power AC3
4kW
Coil Voltage VAC Nom
240V
Switching Power AC1
1.5kW
Switching Current AC3
9A
SVHC
No SVHC (23-Jan-2024)
Documents techniques (2)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Non applicable
Conforme à la norme RoHS Phthalates:Non applicable
SVHC :No SVHC (23-Jan-2024)
