FECC1602E-NSWBBW-91LE
Alphanumeric LCD, 16 x 2, White on Blue, 3V, Parallel, English, Japanese, Transmissive

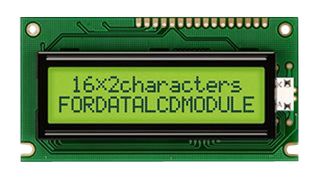

L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
FabricantFORDATA
Réf. FabricantFECC1602E-NSWBBW-91LE
Code Commande14T3205
Gamme de produitFECC1602E Series
Fiche technique
Modèle arrêté
Informations produit
FabricantFORDATA
Réf. FabricantFECC1602E-NSWBBW-91LE
Code Commande14T3205
Gamme de produitFECC1602E Series
Fiche technique
Character Count x Line16 x 2
Display AppearanceWhite on Blue
Logic Voltage3V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeTransmissive
Character Size5.23mm
LCD Display TypeBSTN
Module Size84mm x 44mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourWhite
Product RangeFECC1602E Series
SVHCTo Be Advised
Produits de remplacement pour FECC1602E-NSWBBW-91LE
1 produit trouvé
Aperçu du produit
- Alphanumeric / character LCD module
- 2 lines of 16 characters - 2 x 16 also referred to as 16 x 2
- Negative mode blue STN material
- Appearance - white characters on blue background
- Transmissive technology, generally for indoor applications
- Chip on board construction (COB) for easy mounting
- On board controller SPLC780 or equivalent (HD44780 derivative)
- English/Japanese font sets
- 3V logic supply, standard parallel interface
- Display duty 1/8, Driving bias 1/4
- White LED backlight
- Preferred view angle - 6 o'clock
- -20 to +70°C wide operating temperature range
- 16 way though hole SIL (top, right) connection, 2.54mm pitch
- Overall max dimensions - 84.0 x 44.0 x 13.5mm
- Viewing area - 64.5 x 16.4mm
- 5mm character (actual dimension 3.00 x 5.23mm)
Spécifications techniques
Character Count x Line
16 x 2
Logic Voltage
3V
Font Set
English, Japanese
Character Size
5.23mm
Module Size
84mm x 44mm
Operating Temperature Max
70°C
Backlighting Colour
White
SVHC
To Be Advised
Display Appearance
White on Blue
Interface Type
Parallel
Display Mode
Transmissive
LCD Display Type
BSTN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
FECC1602E Series
Documents techniques (1)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :À déterminer
Conforme à la norme RoHS Phthalates:À déterminer
SVHC :To Be Advised
