GPR30H10D CAL

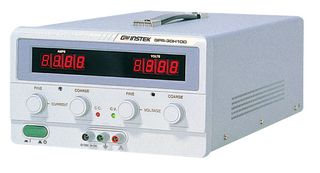

The GPR30H10D CAL from GW Instek is a GPR-H series single output, 300W linear DC power supply. To protect loads, the GPR-H series power supply features robust protection measures with overload and reverse polarity protection. Continuous or dynamic output is supported for pulsed current applications such as power amplifier testing. The 0.01% high regulation and low ripple/noise make the GPR30H10D suitable for high end benchtop applications requiring precision. It also features constant voltage and constant current operation.

• Calibrated linear DC power supply
• Output voltage range from 0V to 300V and output current range from 0A to 1A
• Line regulation of < 0.01% + 3mV (CV mode) and < 0.2% + 3mA (CC mode)
• Load regulation of <0.01% + 5mV (<10A), < 0.02% + 5mV (>10A) (CV mode) & <0.2% + 5mA (CC mode)
• < 1mVrms (5to 1MHz) (CV), < 5mArms (< 20A)/< 10mArms (< 30A)/< 20mArms (< 50A) (CC) ripple & noise
• Recovery time of < 100μS ( 50% load change, minimum load 0.5A) (CV mode))
• Meter with 3 1/2 digit 0.5" LED display and ±( 0.5% of rdg + 2 digits) accuracy
• Insulation resistance of 100Mohm or above (DC 1000V)
• 100V/120V/220V/240V (±10%), 50/60Hz AC power source
• 225mm (W) x 145mm (H) x 420mm (D) dimension and 13.5Kg weight

Applications

Test & Measurement

Contenu

GPR30H10D linear DC power supply, User manual, Power cord, GTL-105 x 1 test lead.
