BAF1-2RN18-LH

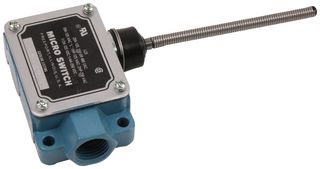

The BAF1-2RN18-LH is a single-pole double-throw (SPDT) 1NO-1NC medium-duty Limit Switch with wobble stick actuator. The MICRO SWITCH™ BAF series snap action switch comes with cast aluminum housing with three-hole mounting. The elastomer boot on sealed actuator protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated right or left, when looking at the nameplate.

• 15° Maximum pre-travel
• -32 to 71°C Operating temperature range

Applications

Industrial, Agriculture
