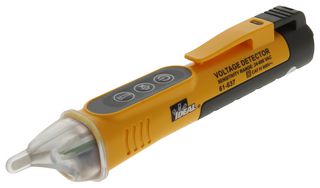

61-637
Voltage Tester, 24V to 600V, LED
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Impossible de récupérer les informations sur la disponibilité
Informations produit
FabricantIDEAL
Réf. Fabricant61-637
Code Commande38AJ0925
Fiche technique
Voltage Measuring Range AC24V to 600V
Meter Display TypeLED
Operating Temperature Min-
Operating Temperature Max-
Product Range-
Plug Type-
SVHCNo SVHC (08-Jul-2021)
Aperçu du produit
61-637 is a CAT IV 600V AC, single range non-contact voltage tester with flashlight that automatically detects and indicates the presence of voltage within range of range of 24- 600V AC. The tester provides non-contact detection of voltage through an antenna enclosed in plastic at the tip of the tester which senses the presence of the electromagnetic field present around live conductors. The tip is illuminated by a green LED when powered on and switches to a red flashing LED, and audible beep that increase in frequency as this the voltage level increases.
- Lanyard tie-off point
- Auto-power off (APO)
- Low battery indication
- Include 2 x 1.5V AAA battery
- LED flashlight in tip operates independently of tester functions and used to illuminate work area
- Audible notification disable
- 2-year warranty
- UL listed
Spécifications techniques
Voltage Measuring Range AC
24V to 600V
Operating Temperature Min
-
Product Range
-
SVHC
No SVHC (08-Jul-2021)
Meter Display Type
LED
Operating Temperature Max
-
Plug Type
-
Documents techniques (2)
Législation et Questions environnementales
US ECCN:EAR99
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :No SVHC (08-Jul-2021)
Télécharger le certificat de conformité du produit
Certificat de conformité du produit
