IS.OMB-001

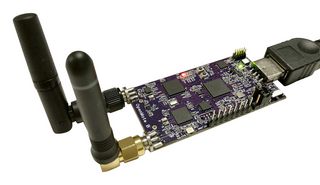

IOT Module, OpenMote B Board, Raspberry Pi, AT86RF215, CC2538, ARM Cortex-M3
L'image a des fins d'illustration uniquement. Veuillez lire la description du produit.
Modèle arrêté
Informations produit
FabricantINDUSTRIAL SHIELDS
Réf. FabricantIS.OMB-001
Code Commande80AH9627
Silicon ManufacturerTexas Instruments
Core ArchitectureARM
For Use WithRaspberry Pi
Product Range-
Core Sub-ArchitectureCortex-M3
Silicon Core NumberAT86RF215, CC2538
Silicon Family NameCC25xx
Kit ContentsOpenMote B Board AT86RF215 & CC2538
SVHCTo Be Advised
Aperçu du produit
- OpenMote B ultra low power board to develop IoT applications in the industrial space
- Ultimate hardware development and prototyping platform for the Industrial IoT
- Supported by most relevant Open Source 6TiSCG implementation (Contiki NG and OpenWSN projects)
- 2.4GHz SMA and SubGHz SMA antenna (not included)
- Ti CC2538 SoC (512Kb Flash 32Kb RAM), AT86RF215 SubGHz radio (868/915MHz)
- Supports all IEEE802.15.4g modulations, simultaneous dual radio operation
- Programming over BSL
- JTAG and OCD compliant, USB interface
- Temperature, relative humidity sensors, 4x LED indicators, 2xAA battery placeholder
- Simultaneous multi-band operation in the 2.4GHz and 868/915MHz ISM bands
Spécifications techniques
Silicon Manufacturer
Texas Instruments
For Use With
Raspberry Pi
Core Sub-Architecture
Cortex-M3
Silicon Family Name
CC25xx
SVHC
To Be Advised
Core Architecture
ARM
Product Range
-
Silicon Core Number
AT86RF215, CC2538
Kit Contents
OpenMote B Board AT86RF215 & CC2538
Documents techniques (1)
Législation et Questions environnementales
US ECCN:Unknown
EU ECCN:Unknown
Conforme RoHS :Oui
RoHS
Conforme à la norme RoHS Phthalates:Oui
RoHS
SVHC :To Be Advised
